The RME 12Mic-D features twelve microphone and line level inputs with digital, no-compromise, studio-quality conversion; remote controllable gains; integrated MADI and Dante connectivity; plus a multitude of additional functionality, designed for use in high-end studio recording, live audio, and location sound and music recording.
The RME 12Mic-D features twelve microphone and line level inputs with digital, no-compromise, studio-quality conversion; remote controllable gains; integrated MADI and Dante connectivity; plus a multitude of additional functionality, designed to make it the perfect companion for any professional recording setup. The 12Mic-D is sonically identical to the already existing 12Mic (with 128 AVB channels) and complements the M-Series lineup of professional network audio solutions.
- Twelve transparent mic preamps for exceptional conversion performance
- MADI & ADAT for maximum flexibility
- Dante Audio Networking - 2 fully redundant network ports
-
Plug & play - rapid user interaction
Specifications
🔌 Inputs
XLR Inputs (1–12):
-
Type: XLR, electronically balanced
-
Impedance: 3.4 kΩ
-
Gain: 0–75 dB (1 dB steps)
-
AD Resolution: 24-bit
-
Frequency Response:
-
8 Hz–20.8 kHz @ 44.1 kHz
-
4 Hz–29.2 kHz @ 96 kHz
-
3 Hz–43.7 kHz @ 192 kHz
-
THD: < -110 dB
-
THD+N: < -104 dB
-
SNR: > 117 dB RMS unweighted, > 120 dBA
-
EIN (30 dB Gain, 150 Ω): 123 dB RMS, 125.5 dBA
-
Max Input Level:
-
+18 dBu @ 0 dB gain
-
-57 dBu @ 75 dB gain
TRS Inputs (1–4):
-
Type: Balanced TRS jack, high-Z (1 MΩ) switchable
-
Gain: 8–50 dB (1 dB steps)
-
SNR: 115 dB RMS unweighted, 118 dBA
-
Max Input Level:
-
+20 dBu @ 8 dB gain
-
-22 dBu @ 50 dB gain
Dante Input:
-
2 x RJ45 (up to 64 channels)
-
Sample Rates: 48 / 96 / 192 kHz
MADI Input:
-
Coaxial (BNC) & Optical (SFP module)
-
Supports 56/64 ch + 96k Frame
-
Max Channels:
-
64 ch @ 48 kHz
-
32 ch @ 96 kHz
-
16 ch @ 192 kHz
Word Clock Input:
-
75 Ω BNC
-
44.1–192 kHz support
-
Intelligent Clock Control
🎧 Outputs
Phones (1/2):
-
Type: 6.3 mm TRS stereo or mono jack
-
Resolution: 24-bit
-
DR: 115 dB RMS unweighted, 118 dBA
-
Frequency Response:
-
9 Hz–22 kHz @ 44.1 kHz
-
9 Hz–45 kHz @ 96 kHz
-
8 Hz–75 kHz @ 192 kHz
-
THD+N: < -100 dB
-
Channel Separation: > 110 dB
-
Max Output Level: +13 dBu (unbalanced), +19 dBu (balanced)
Dante Output:
-
2 x RJ45 (up to 64 channels)
-
Sample Rates: 48 / 96 / 192 kHz
MADI Output:
-
Coaxial (BNC) & Optical (SFP)
-
Same format/channel support as MADI input
ADAT Output:
-
3 x TOSLINK
-
Up to 2 ch @ 192 kHz (S/MUX4)
Word Clock Output:
-
75 Ω BNC
-
44.1–192 kHz
-
Seamless clock source switching
⚙️ General Features
-

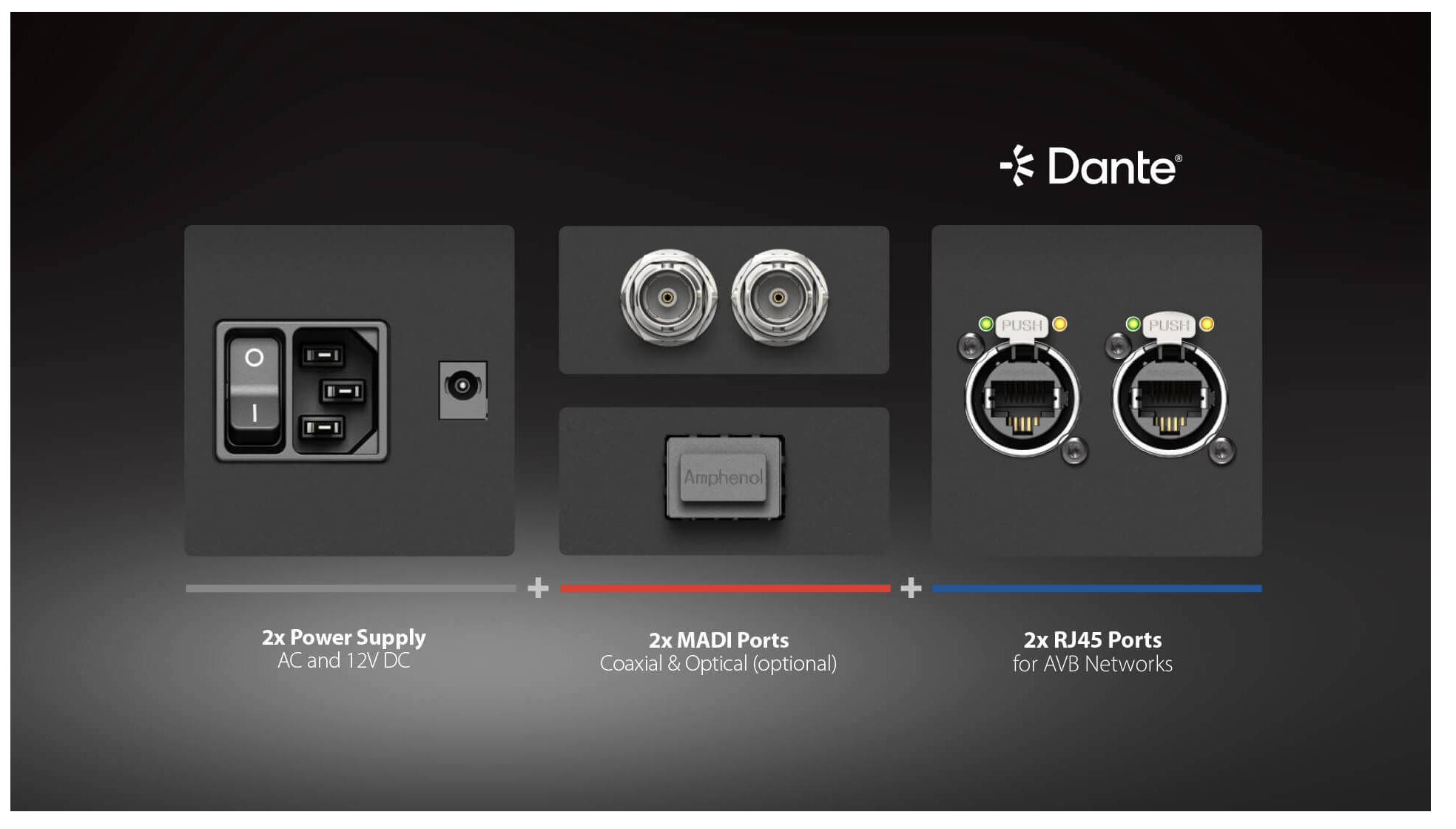

Dual Dante (2 x RJ45), up to 64 ch per direction
-
MADI redundancy (via optional SFP)
-
Up to 268 x 282 internal channel routing
-
1U 19” rack-mount unit
-
1.54” color display, control knob, 4 buttons
-
Remote control via HTTP & JSON
-
USB 2.0 for firmware/control
-
DC-coupled outputs
-
Internal PSU + optional 12V DC backup
📏 Hardware
-
Dimensions: 440 x 44 x 243 mm (17.3” x 1.7” x 9.6”)
-
Weight: 2.8 kg (6.2 lbs)
-
Package: 560 x 315 x 115 mm
-
Compliance: CE, FCC, WEEE, RoHS
-
Power:
-
Internal 100–240V AC (30 W)
-
Optional 12V DC (2.5 A)
-
Power consumption: ~20 W, standby 0.5 W
