RME Audio Fireface UCX II

RME Audio Fireface UCX II

40-Channel Advanced USB Audio Interface

全店，全港免運費

HK$13,340.00
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
數量 組合數量
一次最大商品購買數量限制為 99999
該數量不適用，請填入有效的數量。
售完

商品存貨不足，未能加入購物車

您所填寫的商品數量超過庫存

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

每筆訂單限購 {{ product.max_order_quantity }} 件

現庫存只剩下 {{ quantityOfStock }} 件

若想購買，請聯絡我們。
商品描述
了解更多
送貨及付款方式
顧客評價
Official Website: Click here

All information are provided by RME Audio.

The Fireface UCX II is a highly integrated pro audio solution in an ultra-compact format for studio and live recordings. It continues RME's long tradition of designing compact advanced interfaces, packing into a half-rack size unit what usually would be spread out over two or three 19 inch panels.

This unique audio system is capable of transferring analog and digital audio data directly to Windows and Mac computers. The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features like a well thought-out Settings dialog and an integrated routing solution realize a quick, comfortable and efficient operation of the Fireface UCX II.

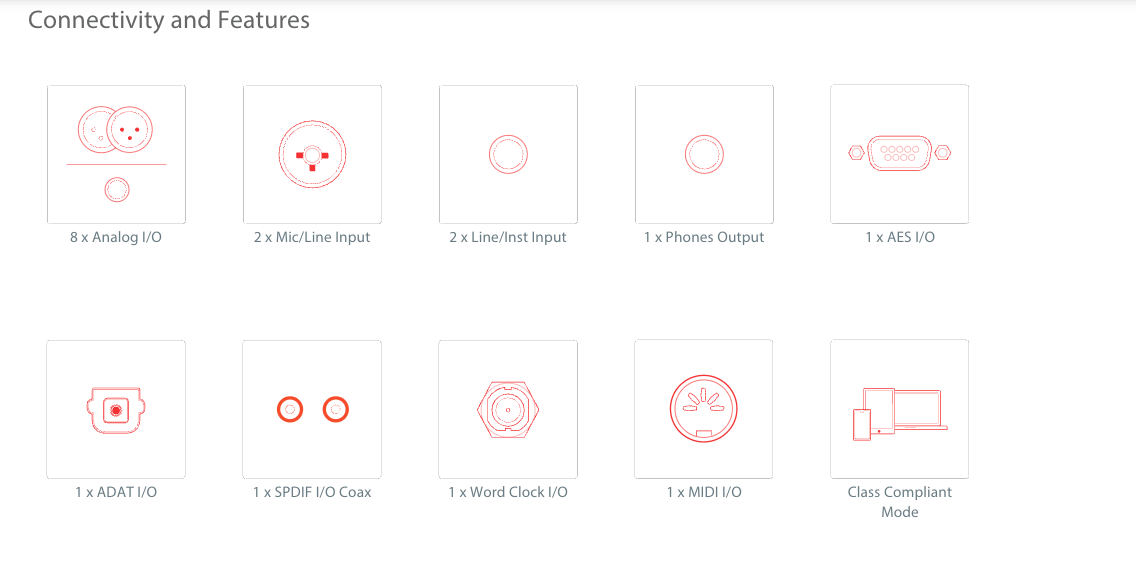

The Fireface UCX II houses two mic/line preamps in XLR combo configuration on the front panel, along with two digitally controlled line/instrument inputs, followed by a headphone jack, various control buttons, a display, and the main volume knob. At the rear is a set of ten analogue balanced line inputs and outputs, MIDI I/O, ADAT I/O, AES/EBU and SPDIF I/O, USB 2.0 as well as a switchable word clock I/O.

With the SteadyClock FS, the Fireface UCX II features the latest clock and jitter rejection technology from RME. Based on a femtosecond clock, SteadyClock FS reduces the intrinsic jitter when converting from and to analogue over all digital formats to a new all-time low.


Specifications

Analog Inputs:
  1. AD (Line In 5-8, Rear):
  • Resolution: 24 bit
  • SNR: 112 dB RMS, 115 dBA
  • Frequency Response:
    • 44.1 kHz: 5 Hz – 20.8 kHz
    • 96 kHz: 3 Hz – 45.8 kHz
    • 192 kHz: 2 Hz – 92 kHz
  • THD: < -110 dB, < 0.00032 %
  • Input: 6.3 mm TRS jack (balanced), 8 kOhm unbalanced, 12 kOhm balanced
  • Sensitivity: +19 dBu or +13 dBu, Gain: 0 to +12 dB
  • Line In 3-4 (Front):
    • Gain: 0 to +12 dB
    • Input Impedance: Instrument 1 MOhm, Line 13 kOhm balanced
    • Input Gain (Inst): +6 dB
  • Microphone In 1-2 (Front):
    • Input: XLR, electronically balanced
    • Gain Range: 75 dB
    • Max Input Level: Gain 0 dB: +18 dBu, Gain 75 dB: -57 dBu
    • EIN: -128 dBu A-weighted
  • Line In 1-2:
    • Input: TRS, electronically balanced
    • Impedance: 10 kOhm balanced, 5 kOhm unbalanced
    • Max Input Level: Gain 0 dB: +24 dBu, Gain 75 dB: -51 dBu

    Digital Outputs:

    1. DA (Line Out 1-6, Rear):
    • Resolution: 24 bit
    • Dynamic Range: 112 dB RMS
    • Frequency Response:
      • 44.1 kHz: 0 Hz – 20.8 kHz
      • 96 kHz: 0 Hz – 45 kHz
      • 192 kHz: 0 Hz – 89 kHz
    • THD: < -108 dB, < 0.0004 %
    • Output Level: Max +19 dBu, TRS jack, 75 Ohm impedance
  • DA - Stereo Monitor Output (Phones 7-8):
    • Output: 6.3 mm TRS stereo jack, unbalanced
    • Max Output Levels: High: +19 dBu, Low: +4 dBu
    • Max Power (32 Ohm load): 210 mW (2.6 Vrms)

    MIDI:

    • I/O: 1 x MIDI I/O via 5-pin DIN jacks, jitter < 1 ms

    Digital Inputs/Outputs:

    1. Inputs:
    • AES/EBU: XLR, transformer-balanced
    • SPDIF Coaxial: RCA
    • ADAT: TOSLINK (up to 8 channels, 24-bit, 48 kHz, supports 96 kHz and 192 kHz)
    • Word Clock: BNC, 27 kHz – 200 kHz
  • Outputs:
    • AES/EBU: XLR, transformer-balanced
    • SPDIF Coaxial: RCA
    • ADAT: TOSLINK
    • Word Clock: BNC, 5 Vpp max output

    General Specs:

    • Power Supply: External
    • Power Consumption: 13 Watts
    • Dimensions: 258 x 44 x 155 mm (with rack ears)
    • Weight: 910 g (2.0 lbs)
    • Operating Temperature: +5° to +50° C (41° F to 122°F)
    • Humidity: < 75%, non-condensing
