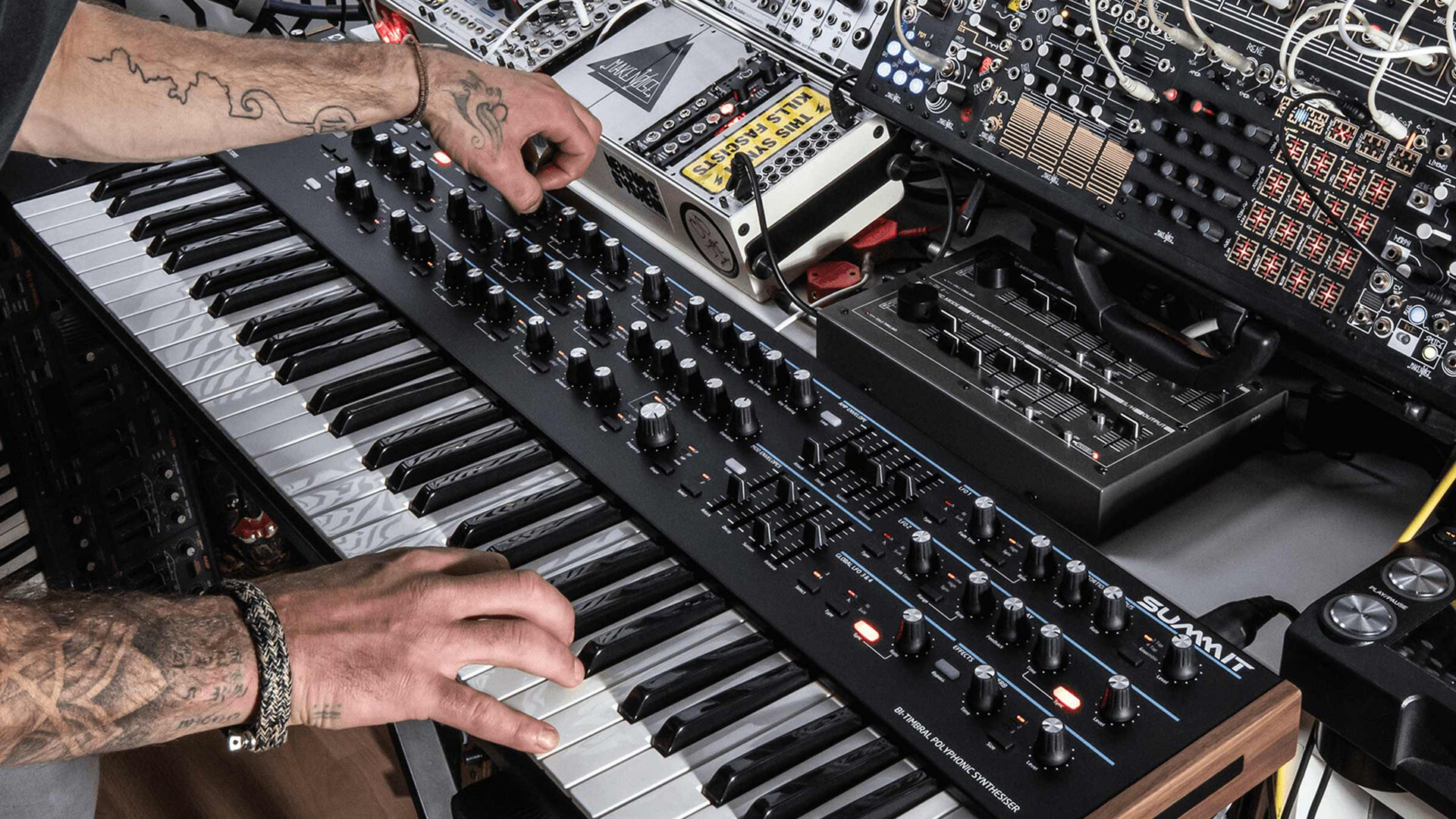

Specifications
Overview
50 control knobs
8 45mm sliders
1 volume knob
1 data encoder knob
Rubberised knob caps with spun metal discs
55 function buttons
2 Animate buttons plus hold button
OLED display
Kensington Lock
Power switch
IEC power supply connector
USB socket for system (MIDI comms only, no bus power)
MIDI In / Out / Thru
2 1/4" jack sockets for continuous or switched pedals
1 3.5mm jack socket for CV in
2 1/4" jack sockets for left and right outputs
2 1/4" jack sockets for left and right auxiliary outputs
2 1/4" jack sockets for left and right inputs
1/4" jack socket for headphone output
Metal chassis with American walnut wooden end cheeks
Metal magnetic inset end pieces
Dimensions
Width 998.5mm
Depth 92mm
Height 303.5mm
Software compatibility
Ableton Live Lite is included
Summit is a USB-MIDI class compliant device
Power requirements
Maximum power consumption 1A
Synth engine
16 note polyphony (dependent on voices used per note)
2-part-timbral
Layered, Split, Dual Bi-Timbral Modes
5 Voice Modes - Mono, MonoLG, Mono2, Poly, Poly2
Per voice
3 oscillators
1 noise generator with HP filter control
1 ring modulator
2 LFOs
1 amp envelope and 2 mod envelopes (ADHSR + looping)
1 filter
Waveforms include
Sine, tri, sawtooth, square / pulse, plus 43 wavetables of 5 waveforms per row
Filter
1 state variable OTA filter per voice
12/24dB slope
Low-pass / band-pass / high-pass / dual filter (separation of each 12dB filters)
dual filter: LP > HP, LP > BP, HP > BP, LP + HP, LP + BP, HP + BP, LP + LP, BP + BP, and HP + HP
Pre-filter overdrive
Post-filter distortion
Modulation
16 modulation slots per patch
2 sources per destination per slot
Mod sources
Direct (depth)
Modulation wheel
Aftertouch (polyphonic and channel AT)
Expression pedal 1
Expression pedal 2
Keyboard velocity
LFO1 positive
LFO1 bi-polar
LFO2 positive
LFO2 bi-polar
Amp envelope
Mod envelope 1
Mod envelope 2
Animate 1
Animate 2
CV mod input bi-polar
Bend Up
Bend Down
Mod destinations
Oscillator 1-3 frequency, v-sync level, shape amount and level
Noise source level
Ring modulator output level
Overall synth output level
Filter drive, distortion, cut-off frequency and resonance
LFO 1 and 2 frequency
Amp env / mod env 1 / mod env 2 attack, decay and release
FM Osc 1 -> osc 2, osc 2 -> osc 3, osc 3 -> osc 1 and noise -> osc 1
Osc 3 -> filter cutoff frequency
Noise -> filter cutoff frequency
Effects
FX are per part
Analogue distortion
3 chorus types
Delay with 16 types of delay sync, LP and HP damping, slew and stereo
FX Mod Matrix source
Direct (depth)
Mod wheel
Aftertouch
Expression pedal 1
Expression/breath pedal 2
Velocity
Keyboard
LFO 1 +/-
LFO 2 +/-
LFO 3 +/-
LFO 4 +/-
Amp envelope
Mod envelope 1 & 2
Animate 1 & 2
CV +/-
Bendwheel +/-
Bend up
Bend down
FX Mod Matrix destinations
Distortion level
Chorus level
Chorus rate
Chorus depth
Chorus feedback
Delay level
Delay time
Delay feedback
Reverb level
Reverb time
Reverb low pass
Reverb high pass
Misc.
FM controls on front panel
Global LFO 3 & 4
Arpeggiator with key latch – 33 patterns
Patch storage - up to 512 on hardware (ships with 256 factory patches)
All knobs (excl. volume), sliders and most buttons transmit and receive MIDI cc commands for external control and mapping
Microtuning with Scala table import and table tuning creation
Manual mode
Multi pot mode: Relative, Pot pick-up, Snap
